RAEGuard 3 传感器更新（PH3 & C3H3N）
2021年06月04日热度：4260
Following the previous Bulletin 20210122, which model is FGM-6100(S), FGM-6200(S) and FGM-6300(S) respectively, supported to detect toxic and oxygen with electrochemical technique and the combustible gas adopting Catalytic and NDIR principle.
We are pleased to announce the release of sensors with Phosphine (PH3) and Acrylonitrile (C3H3N) used on RAEGuard 3, model is FGM-6300 with aluminum alloy enclosure or FGM-6300S with stainless steel. Meanwhile, the scope of CPA certificate of both CO and H2S has been enlarged and could cover the full-scale range, the order information please see attached Price List of RAEGuard 3.

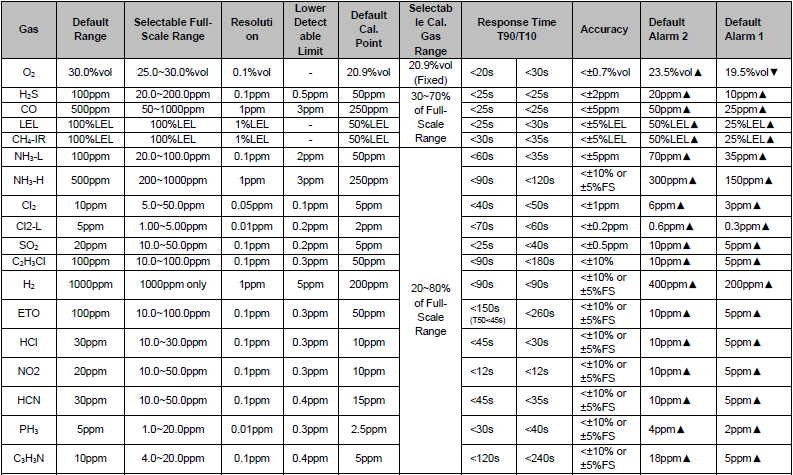

The detail specification is shown as follows:
Note：The performance characteristics of the above products are typical results tested in an environment with a temperature of +20 ° C and a humidity of 50% RH. When calibrating, use the calibration cap and the recommended flow for detection. If the sunshade/deluge protection is used instead or the detection is carried out at low temperature, its response speed will be slowed down.
LEL model is FGM-6100/6100S. NDIR model is FGM-6200/6200S. Toxic and Oxygen models are: FGM-6300/6300S. No suffix that means aluminum alloy housing material, and "S” that means a stainless-steel housing material.
Regarding ETO sensor, when ambient temperature is less than 10°C, substance Ethylene Oxide will exist by liquid, which will affect the detector’s performance probably.
* For availability, please contact Honeywell Analytics.
1ppm is equivalent to 1μmol/mol.
